1. Prerequisites

Before proceeding with the steps in this document, ensure your service has integrated Prometheus metrics collection. For details, refer to prometheus-metrics-intergration-guideline.md

2. Prometheus Alert Rule Configuration

2.1. Add `prometheusrule.yaml` to `<helm-pkg>/templates`.

Example:

Update the metrics configuration to your service name. See freeleaps-ops/freeleaps/helm-pkg/metrics.

{{- /*
Copyright Broadcom, Inc. All Rights Reserved.
SPDX-License-Identifier: APACHE-2.0
*/}}

{{- if .Values.metrics.prometheusRule.enabled }}
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: {{ .Values.metrics.prometheusRule.name }}
  namespace: {{ .Values.metrics.prometheusRule.namespace | quote }}
  {{- with .Values.metrics.prometheusRule.labels }}
  labels:
    {{- toYaml . | nindent 4 }}
  {{- end }}
spec:
  groups:
  {{- with .Values.metrics.prometheusRule.rules }}
    - name: {{ $.Values.metrics.prometheusRule.name }}
      rules:
      {{- range . }}
        - alert: {{ .alert }}
          expr: {{ .expr | quote }}
          {{- if .for }}
          for: {{ .for }}
          {{- end }}
          {{- if .labels }}
          labels:
            {{- toYaml .labels | nindent 12 }}
          {{- end }}
          {{- if .annotations }}
          annotations:
            {{- toYaml .annotations | nindent 12 }}
          {{- end }}
      {{- end }}
  {{- end }}
{{- end }}

2.2. Add prometheusrule configuration to `values.{alpha/prod}.yaml`

Example:

See freeleaps-ops/freeleaps/helm-pkg/metrics.

prometheusRule:
    name: freepeals-prod-metrics
    enabled: true # disable in alpha environment
    namespace: freeleaps-monitoring-system
    labels:
      release: kube-prometheus-stack
    rules:
    - alert: FreeleapsMetricsServiceDown # Service down alert
      expr: up{job="metrics-service"} == 0
      for: 1m
      labels:
        severity: critical # severity: warning/info/critical
        service: metrics-service # service name
        namespace: freeleaps-prod # namespace of the service
      annotations:
        summary: Freeleaps Metrics service is down (instance {{ $labels.instance }}) # summary
        description: Freeleaps Metrics service has been down for more than 1 minute. # description
        runbook_url: https://netorgft10898514.sharepoint.com/:w:/s/FreeleapsEngineeringTeam/EUlvzumTsPxCpPAzI3gm9OIB0DCLTjQzzYVL6VsHYZFjxg?e=0dxVr7 # Runbook url
    - alert: FreeleapsMetricsServiceHighErrorRate
      expr: rate(http_requests_total{job="metrics-service",status=~"5.."}[5m]) > 0.1
      for: 5m
      labels:
        severity: warning
        service: metrics-service
        namespace: freeleaps-prod
      annotations:
        summary: High error rate in freeleaps metrics service (instance {{ $labels.instance }})
        description: Freeleaps Metrics service error rate is {{ $value }} errors per second.
        runbook_url: https://netorgft10898514.sharepoint.com/:w:/s/FreeleapsEngineeringTeam/EUlvzumTsPxCpPAzI3gm9OIB0DCLTjQzzYVL6VsHYZFjxg?e=0dxVr7

1.3. Verify Alert Rule Configuration is Effective

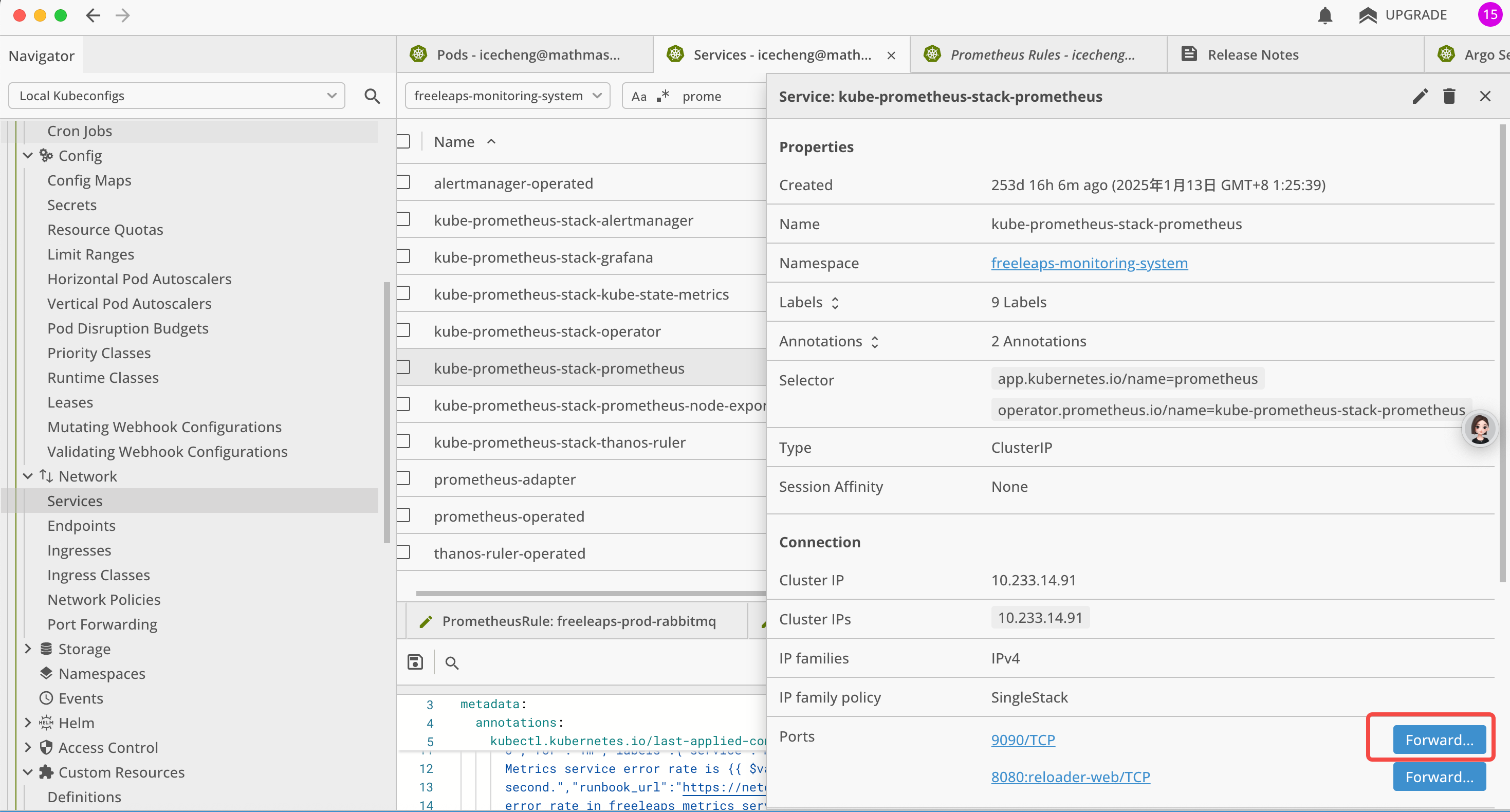

Redirect to local

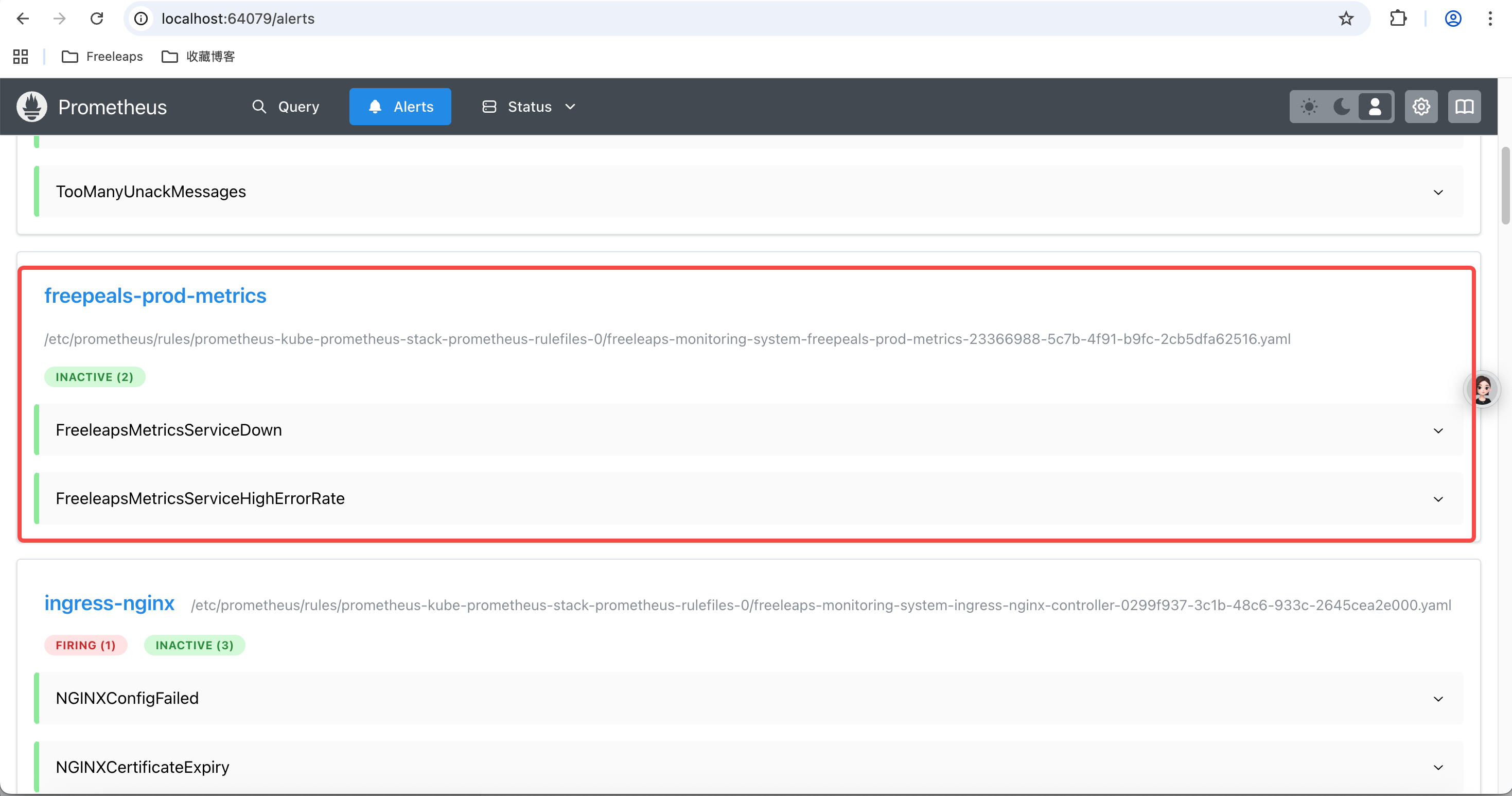

You can see the newly added rules indicating they are effective

3. Add AlertmanagerConfig (Email Notifications)

3.1 Add AlertmanagerConfig

If there is no AlertmanagerConfig in the namespace, create one. If it already exists, no action is required.

To create a new AlertmanagerConfig, refer to freeleaps-ops/altermanager/altermanager-config.yaml.

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: altermanager-email-credentials
  namespace: freeleaps-prod # The namespace whose service alerts you want to configure
data:
  password: cHducGNya3d0aXp5Z2RoZQ==
---
apiVersion: monitoring.coreos.com/v1alpha1
kind: AlertmanagerConfig
metadata:
  name: alertmanager-config
  namespace: freeleaps-prod # The namespace whose service alerts you want to configure
spec:
  receivers:
    # - msteamsConfigs:
    #     - sendResolved: true
    #       text: '{{ template "msteams.default.text" . }}'
    #       title: >-
    #         {{ if eq .Status "firing" }}🚨 [FIRING] 🔥{{- else -}}🙌 [RESOLVED]
    #         🍻{{- end -}}
    #       webhookUrl:
    #         key: webhook-url
    #         name: freeleaps-teams-webhook
    #   name: ms-teams
    - emailConfigs:
        - to: "icecheng@mathmast.com" # email recipient
          from: "support@freeleaps.com" # email sender
          smarthost: "smtp.freeleaps.com:465"
          authUsername: "support@freeleaps.com"
          authPassword:
            name: "altermanager-email-credentials"
            key: "password"
          authIdentity: "support@freeleaps.com"
          requireTLS: false
          sendResolved: true

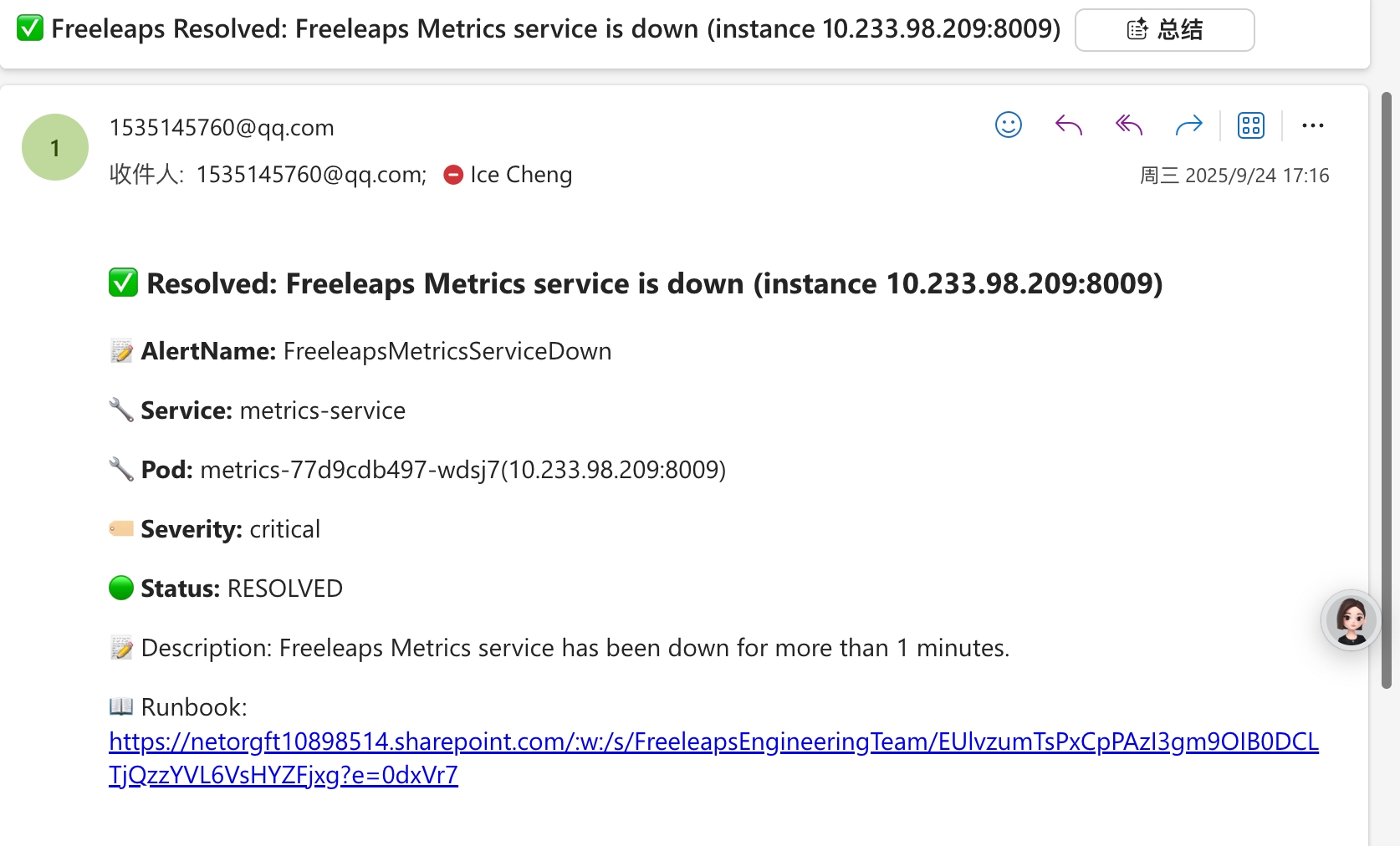

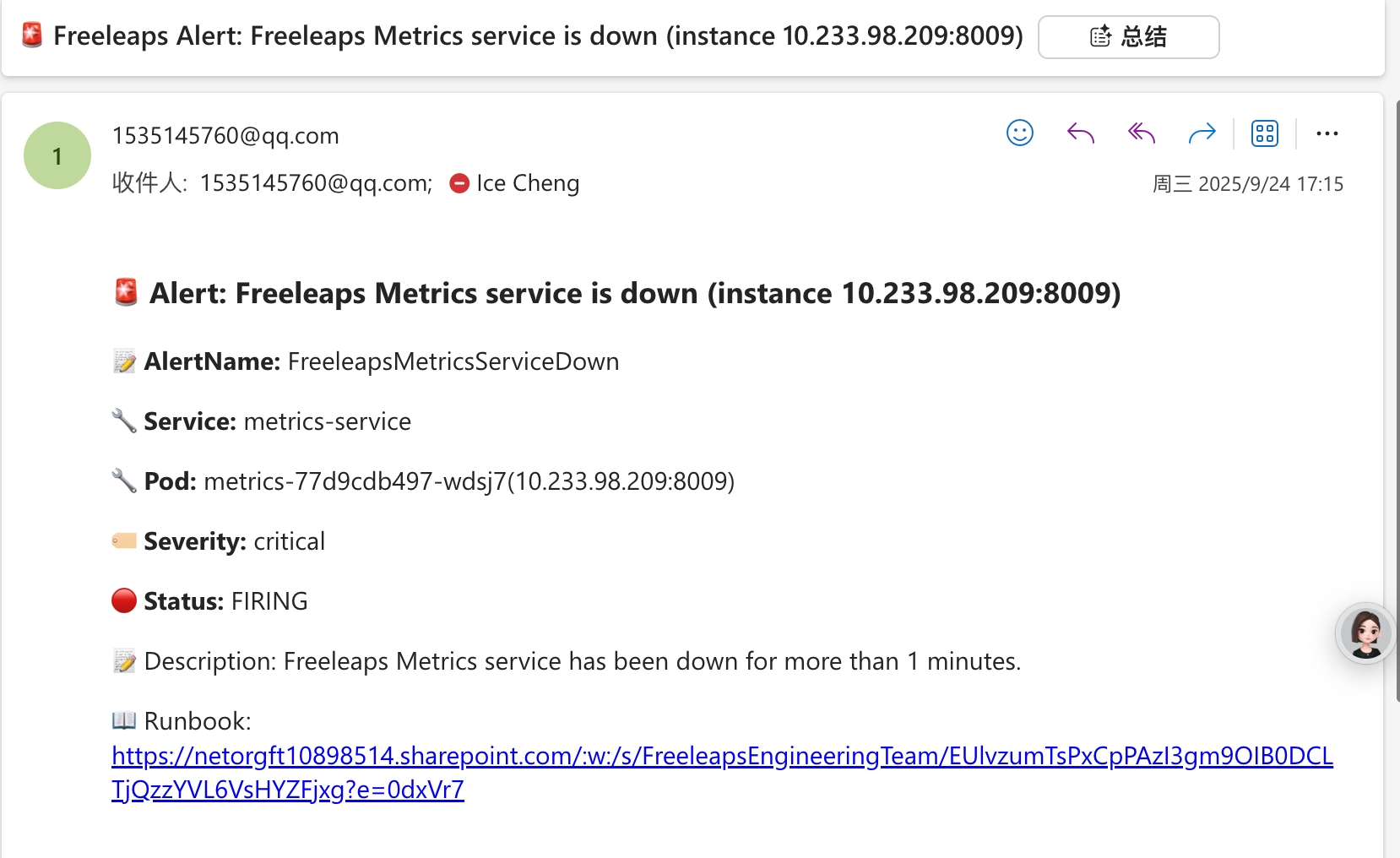

          headers: # email Subject configuration
            - key: Subject
              value: '{{ if eq .Status "firing" }}🚨 Freeleaps Alert: {{ .CommonAnnotations.summary }}{{ else }}✅ Freeleaps Resolved: {{ .CommonAnnotations.summary }}{{ end }}'
          html: |- # email content configuration
            <h3><strong>{{ if eq .Status "firing" }}🚨 Alert: {{ .CommonAnnotations.summary }}{{ else }}✅ Resolved: {{ .CommonAnnotations.summary }}{{ end }}</strong></h3>
            <p><strong>📝 AlertName:</strong> {{ .CommonLabels.alertname }}</p>
            <p><strong>🔧 Service:</strong> {{ .CommonLabels.service }}</p>
            <p><strong>🔧 Pod:</strong> {{ .CommonLabels.pod }}({{ .CommonLabels.instance }})</p>
            <p><strong>🏷️ Severity:</strong> {{ .CommonLabels.severity }}</p>
            <p><strong>{{ if eq .Status "firing" }}🔴 Status:{{ else }}🟢 Status:{{ end }}</strong> {{ .Status | toUpper }}</p>
            <p>📝 Description: {{ .CommonAnnotations.description }}</p>
            <p>📖 Runbook: <a href="{{ .CommonAnnotations.runbook_url }}">{{ .CommonAnnotations.runbook_url }}</a></p>
      name: email
  route:
    groupBy:
      - severity
    groupInterval: 5m
    receiver: email
    groupWait: 5m
    repeatInterval: 6h
